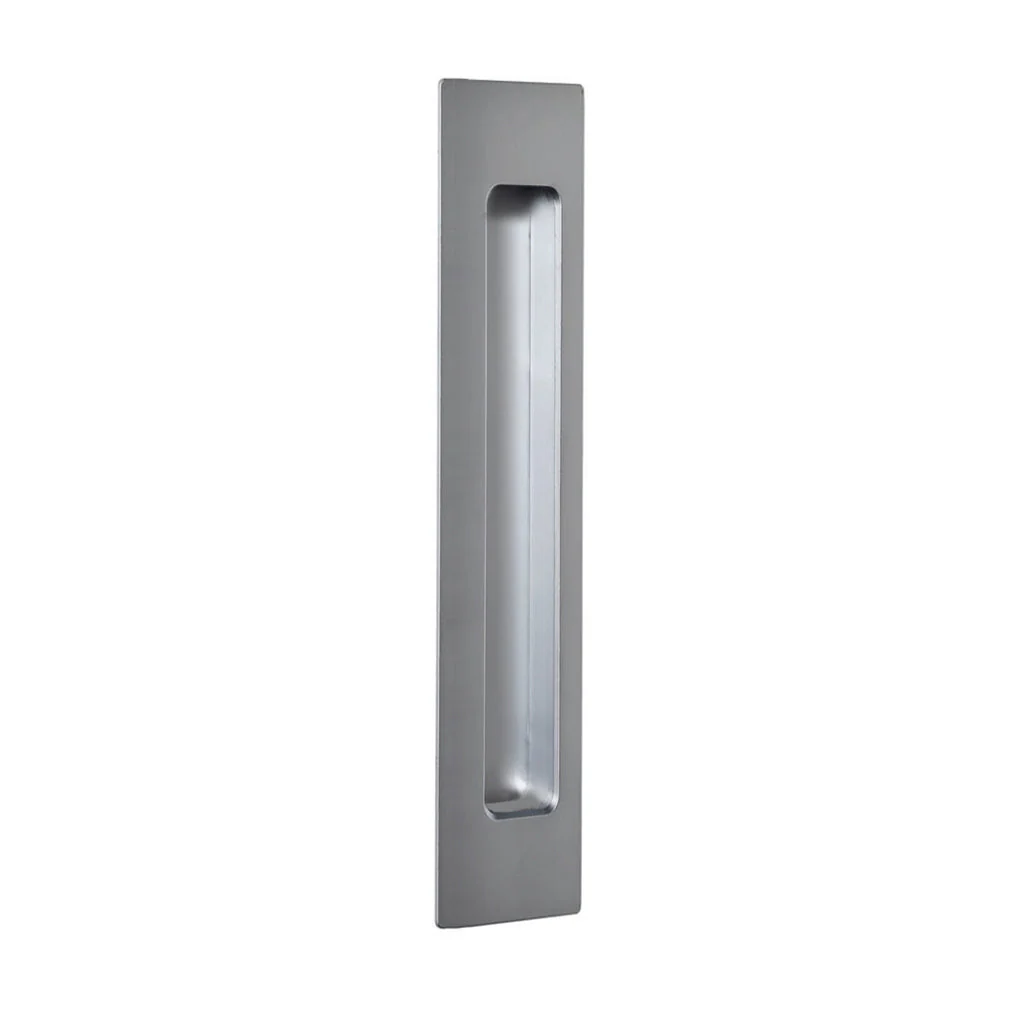

HB 675 Bi-Fold Flush Pull
Designed primarily for use with bi-fold and pivot doors, the Halliday + Baillie HB 675 Flush Pull also suits heavy sliding doors, hinge doors, or can be used horizontally on drawers. It provides an ample lip and generous 15mm internal depth for when a more substantial grip is required.

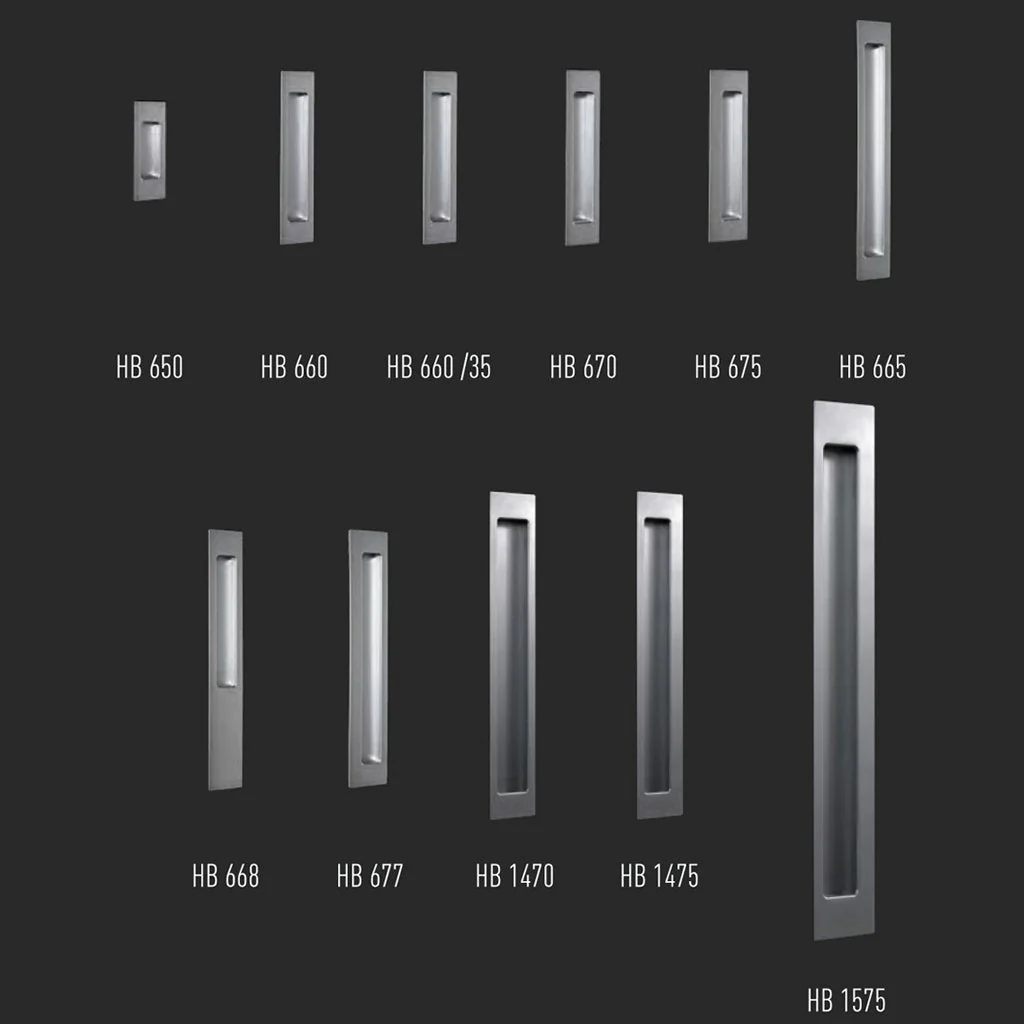

Available in a wide range of sizes and finishes, the Halliday + Baillie Flush Pulls are beautifully designed with concealed fixing (without exposed screw fasteners) for a pared back and sophisticated contemporary look.
Sold individually. For double-sided use, install one pull on each side of the door. If installing on a pocket door, pair with an Edge Pull to pull the door from its recessed position. Combine with HB 680 Push Button Edge Pull for a matching set.
Made in New Zealand.
Specifications
Suitable for wood or aluminum doors.
Includes: Handed Flush Pull (QTY 1) with Timber Fixing Kit HB 604 (required for installation in wood doors)
L 170 mm (6.6") x W 46 mm (1.8") x D 18 mm (.67") Internal Grip Depth: 16 mm (.70")
- Minimum Door Thickness for back-to-back installation is 1-1/2"
- This flush pull is handed. Specify LH or RH
- Glue, epoxy, silicone products etc are not required or recommended for installation.
Material(s)
Diecast zinc and brass
Finishes:
- SC: Satin Chrome
- PC: Polished Chrome
- BN: Brushed Nickel
- PB: Polished Brass
- WHT: Powder Coat White
- EBA: Powder Coat Electro ™ Black Ace
- EMB: Powder Coat Electro ™ Medium Bronze
- KC: Matte Black Chrome
- ORB: Oil Rubbed Bronze
- EFW: Electro Flat White
- EDB: Electro Dark Bronze
Complete Finishes List and here
Product Downloads
HB 675 Product Sheet
HB 675 Installation Template
HB 675 Wood Fixing Specification Sheet
HB Full Catalogue
Original: $200.65
-70%$200.65
$60.20
