HB Flush Pull Series

Available in a wide range of sizes and finishes, the Halliday + Baillie Flush Pulls are beautifully designed with concealed fixing (no exposed screws) for a pared-back and sophisticated look.

Sold individually. For double-sided use, install one pull on each side of the door. If installing on a pocket door, pair with an Edge Pull to pull the door from its recessed position. Combine with HB 680 Push Button Edge Pull for a matching set.

For a sliding door locking privacy function select the HB 690/35 Privacy Set — designed for bathrooms and other private spaces.

Find the HB 680 here.

Made in New Zealand.

Flush Pull Models & Specifications

Suitable for timber or aluminum doors.
All models install without adhesives or silicone. For timber installs, the HB 604 Fixing Kit is included where required.

HB 650 : great for small sliding windows and built in joinery where a consistent visual theme is required to match the HB660 or HB665 flush pull series.
L 105mm (4.1") x W 36mm (1.4") x D 14mm (0.5")

HB 660 : use this pull with the HB 680 Edge Pull for pocket doors.
L 170mm (6.7") x W 36mm (1.4") x D 14mm (0.5")

HB 660/35 : provides the same dimensions as the standard HB 660 but with a slightly shallower depth for use together with the HB 680 Edge Pull on 35mm (1⅜" ) doors.
L 170mm (6.7") x W 36mm (1.4") x D 12mm (0.4")

HB 630 : similar to the HB 660 but for privacy sliding doors with keyed locking.
L 155mm (6.1") x W 25mm (1.0") x D 75mm (3.0")

HB 665 : a longer pull pairs nicely with over height doors
L 250mm (9.8") x W 36mm (1.4") x D 14mm (0.5")

HB 668 : this asymmetrical pull is great for bi-parting or passage sliding doors.
L 250mm (9.8") x W 36mm (1.4") x D 14mm (0.5")

HB630 : this keyed lock with key/ snib on both sides matches HB 668
L 213mm (8.4") x W 25mm (1.0") x D 75mm (3.0")

HB640 : the narrow backset version of HB 630 with key/ snib both sides also matches HB 668
L 250mm (9.8") x W 36mm (1.4") x D 11mm (0.4")

HB 670 : a variant of the HB 660 but with a deeper internal depth of 16mm. It is ideal for applying the extra force you need to move large heavy sliders or when a more generous grip is preferred.
L 170mm (6.7") x W 36mm (1.4") x D 18mm (0.7")

HB 675: Designed primarily for use with bi-fold doors, this pull suits pivot doors, bi-fold doors, or cabinetry drawers. It provides an ample lip and generous internal depth for when a more substantial grip is required.
L 170mm (6.7") x W 46mm (1.8") x D 18mm (0.7")
NOTE: This flush pull is handed. Specify LH or RH
**Please contact us to order HB675

HB 677: HB 677 Flush Pull is the big brother of the HB 675. Like its counterpart, this pull would just as well suit pivot doors, bi-fold doors, or cabinetry drawers. It provides an ample lip and generous internal depth for when a more substantial grip is required.
L 250mm (9.8") x W 46mm (1.8") x D 17mm (0.67")
NOTE: This flush pull is handed. Specify LH or RH
**Please contact us to order HB677

HB 1470 : very large which work well proportionately with large sliding doors.
L 310mm (12.2") x 50mm (2.0") x 15mm (0.6")

HB 1475 : Bi-fold Flush Pull which is similar but has a deeper grip to manoeuvre the door. Great for hinge or pivot doors.
L 310mm (12.2") x 50mm (2.0") x 15mm (0.6")
NOTE: This flush pull is handed. Specify LH or RH
**Please contact us to order HB1475

HB 1575 : This super size pull is the largest at a 20-inch height. These provide an appropriately-scaled pull for taller pivot or bi-fold doors, while its increased finger grip allows sufficient leverage for easier operation of heavier doors.
L 510mm (20.0") x 70mm (2.7") x 17mm (0.7")
NOTE: This flush pull is handed. Specify LH or RH
**Please contact us to order HB1575

Glue, epoxy, silicone products etc are not required or recommended for installation.

Material(s)

Diecast zinc/ HB 1470, 1475, 1575 Solid Brass

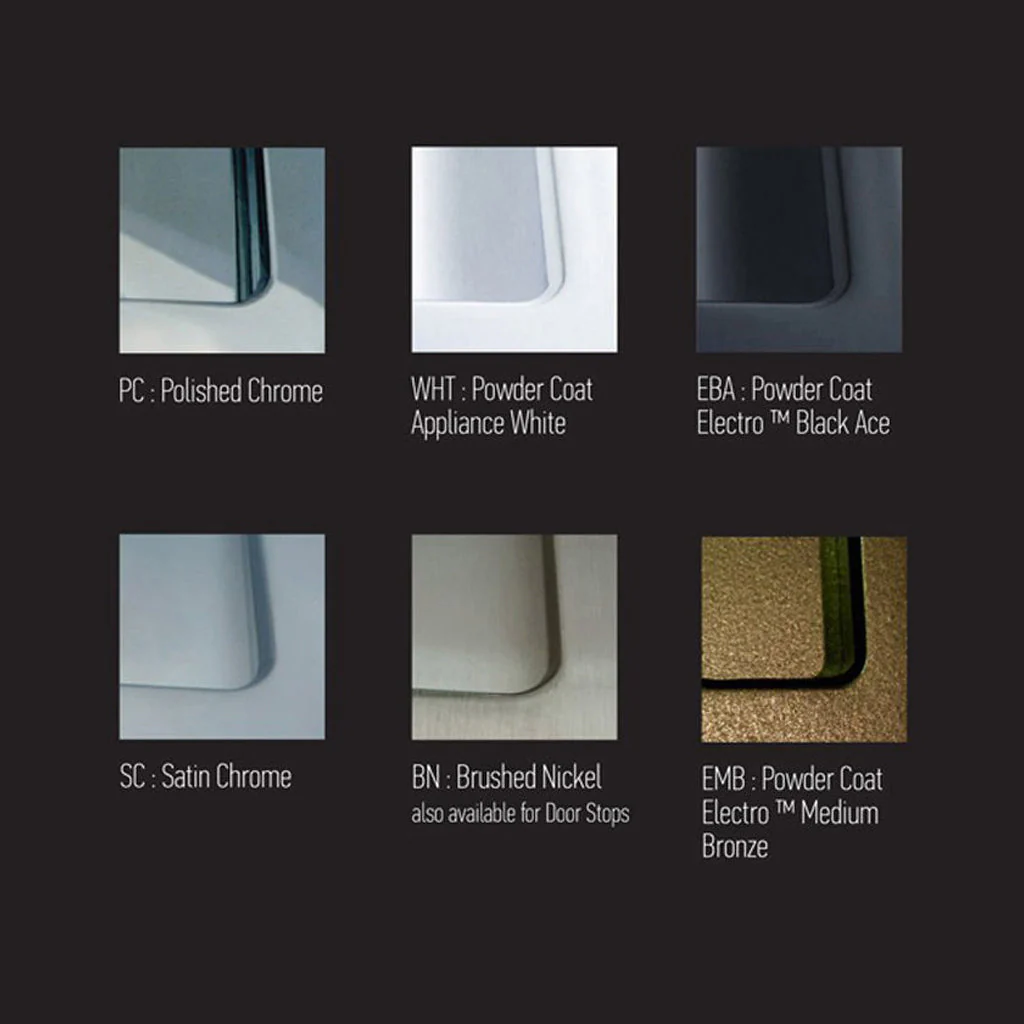

Finishes:

• SC: Satin Chrome
• PC: Polished Chrome
• BN: Brushed Nickel
• WHT: Powder Coat White

• EBA: Powder Coat Electro ™ Black Ace
• EMB: Powder Coat Electro ™ Medium Bronze
• EFW: Powder Coat Electro ™ Flat White

Complete Finishes List and here

Product Downloads

HB Full Catalogue
